Through the SD card interface, TF card interface, USB interface, and Copy button on the machine, you can directly insert the corresponding storage card and external storage device to achieve easy one-key extraction, completing material copying and backup.

I. Machine Interfaces

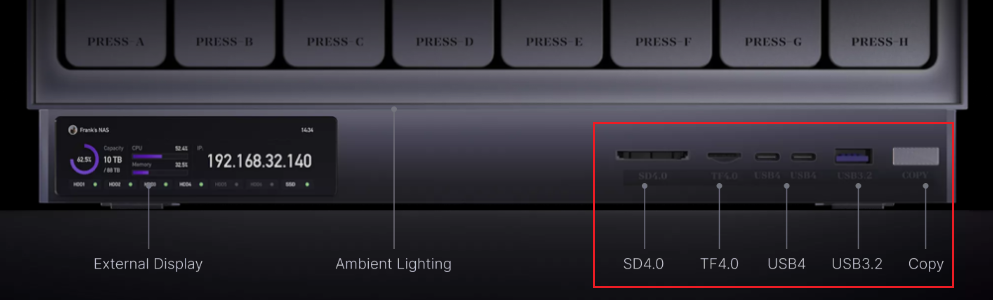

The interfaces and Copy button of Cocard are located on the front of the machine.

II. Card Drawing Settings and Usage

Zettlab AI NAS provides two card-drawing modes.

Automatic Card Drawing Mode:

Complete the one-key setting of Auto Task in advance inside the machine, and press the 【COPY】 button on the machine to complete the card drawing with one key.

Serial Number	Name	Function Description
1	Task Name	Name this automatic card-drawing process
2	Data Source	Click to complete the selection based on the type of inserted storage device
3	Destination	1. Add and set the default save location for subsequent automatic card drawing 2. Click the 【Add】 button to add multiple copy paths
4	Advanced Settings	**Optional feature.** Users can customize more card-drawing details based on personal needs
5	Confirm	Click to complete the settings

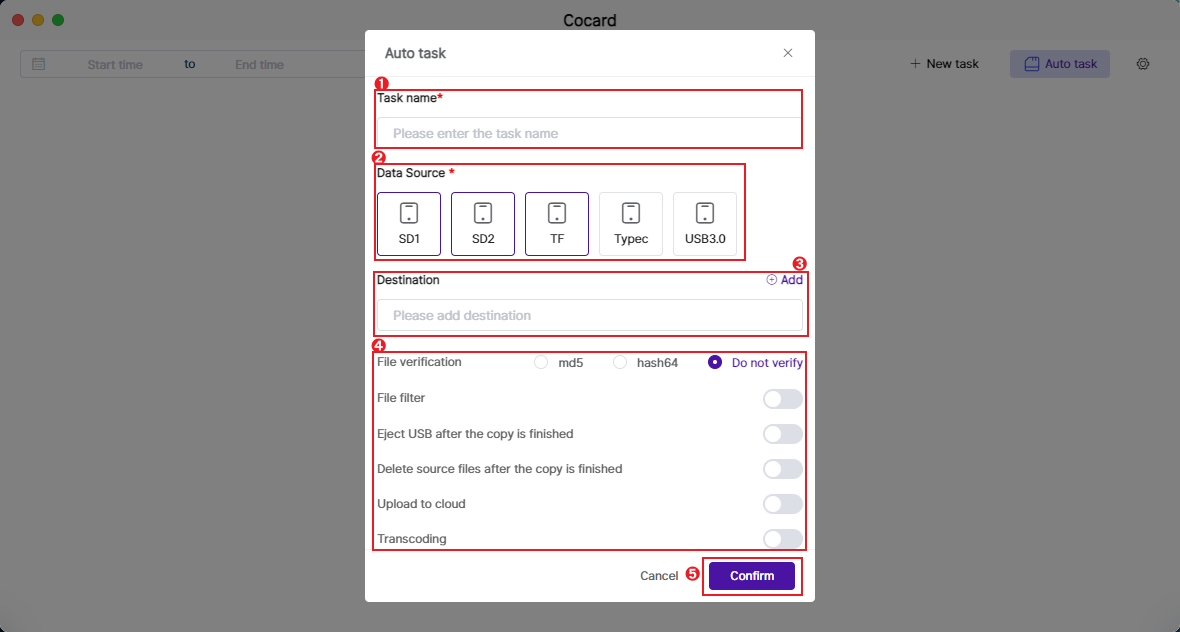

1. In the Cocard interface, find and click the 【Auto Task】 button, and the one-key card-drawing setting interface will pop up.

2. The 【Advanced Settings】 in step 4 are optional. If you need to perform 【Advanced Settings】, after selecting the material source, further specify the corresponding storage location in the NAS to ensure proper data storage:

   1. Choose whether to verify the file
   2. Whether to classify the data copied by one-key
   3. Whether to eject the device after copying is completed
   4. Whether to delete the original device data after copying is completed
   5. Whether to synchronize the data to the cloud or local device
   6. Whether to perform transcoding on the file

Manual Card Drawing Mode:

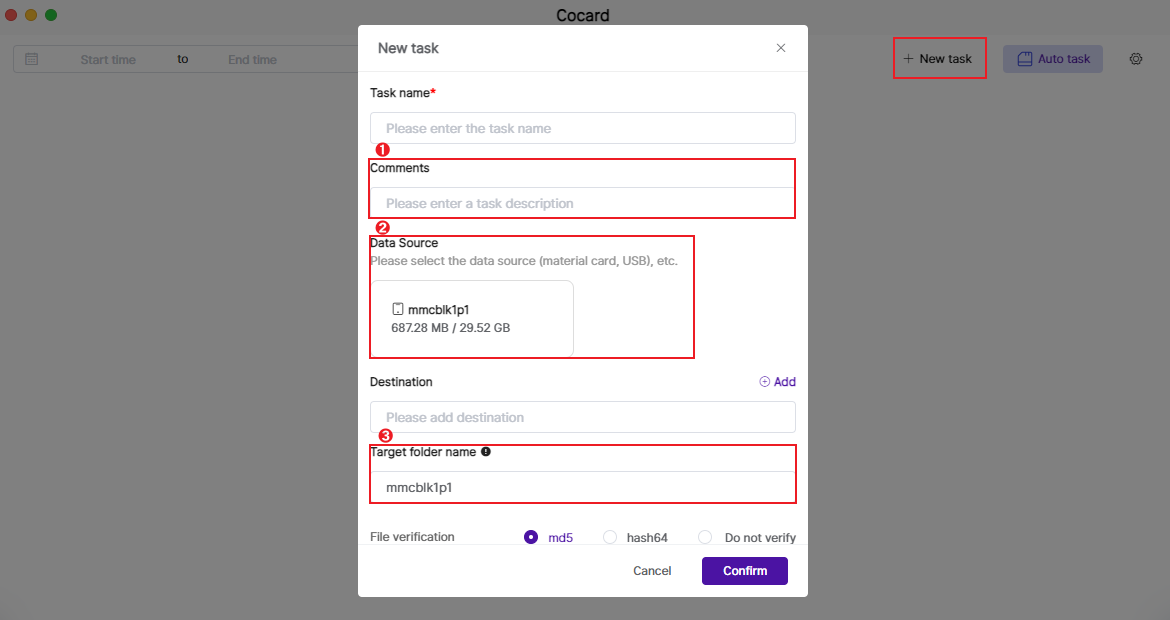

Different from automatic card drawing, this mode requires the user to manually insert the storage card each time and click the 【+New task】 button in the Cocard interface to operate.

Serial Number	Name	Function Description
1	Comments	Customizable feature, allows you to add any remarks to this copy file
2	Data Source	Click to complete the selection based on the type of inserted storage device
3	Target Folder Name	After inserting the storage device into the machine, the system will automatically detect and display the device name, no user action is required

Note: The other steps are the same as those described in 【1. Automatic Card Drawing Mode】.

Copy Card Information Inquiry

In the Cocard interface, click on the target card-drawing task, and you can see detailed information about the card-drawing data on the right side.

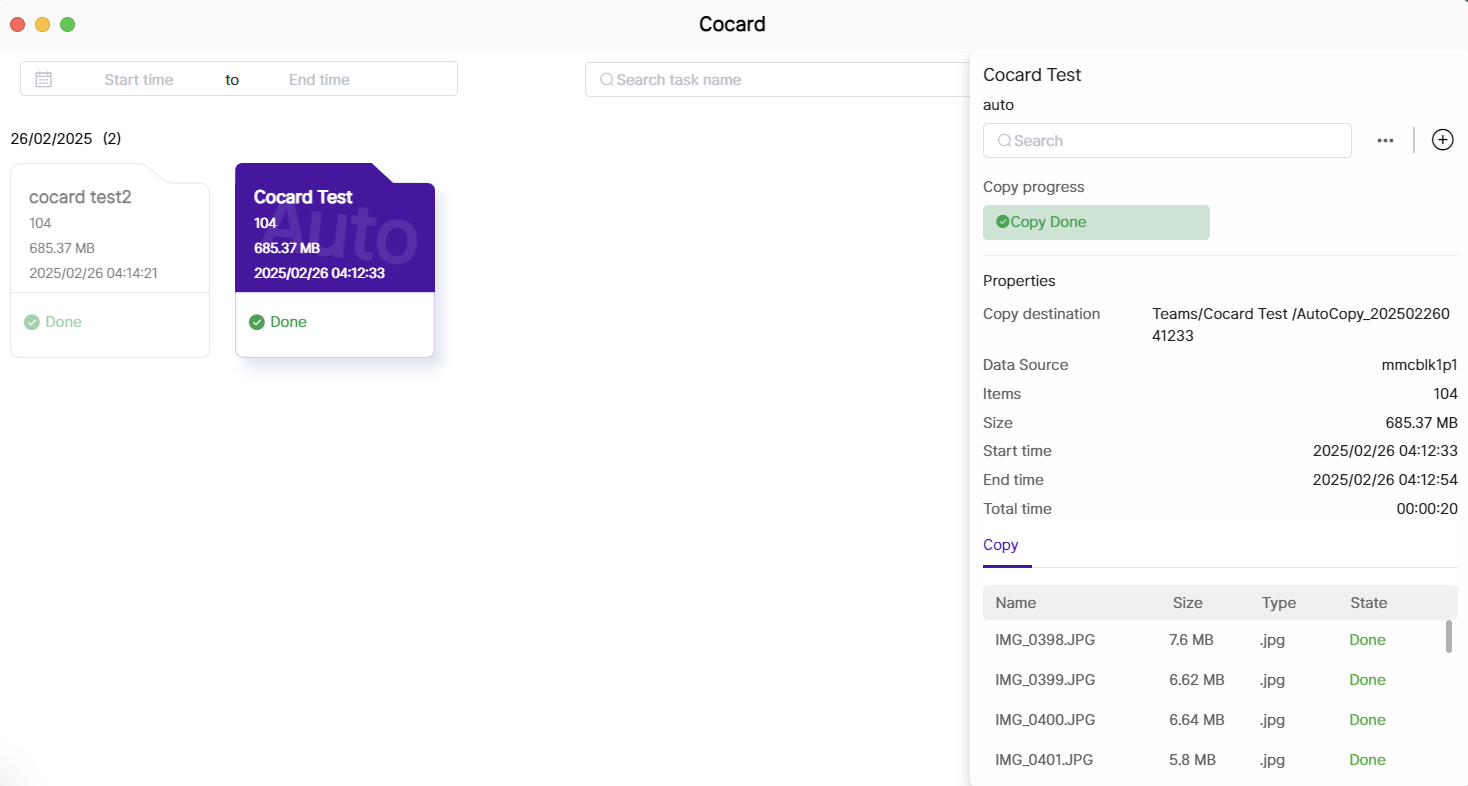

• When using Auto Task to complete card drawing, the task interface will display the Auto watermark (as shown in the figure below)

• When using +New Task to complete card drawing, the task interface will not have any watermark (as shown in the figure below)

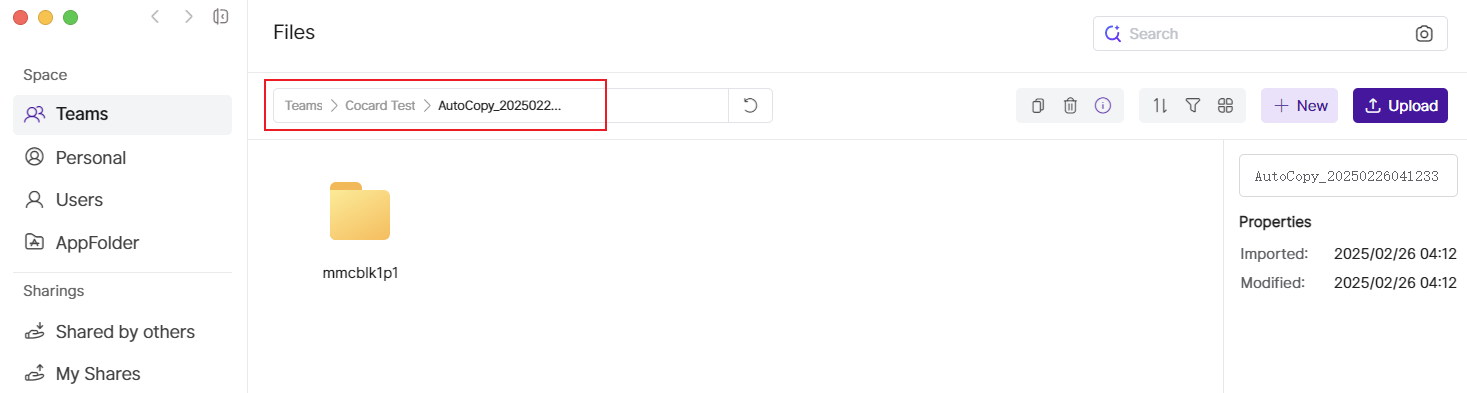

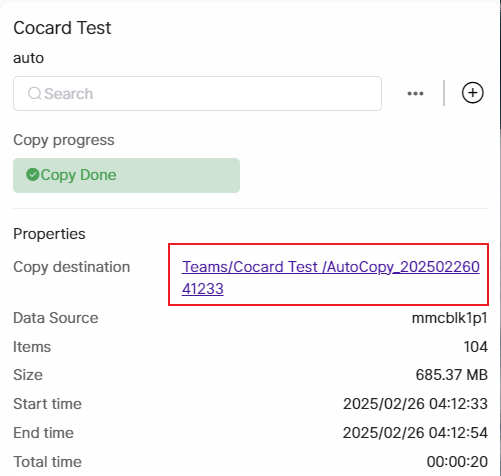

• If you need to quickly open the card-drawing content, select the card-drawing task and click Copy destination in the Cocard Test interface to complete the quick jump (as shown in the figure below)
